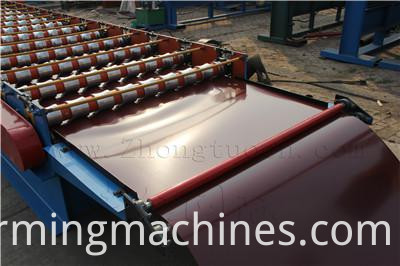

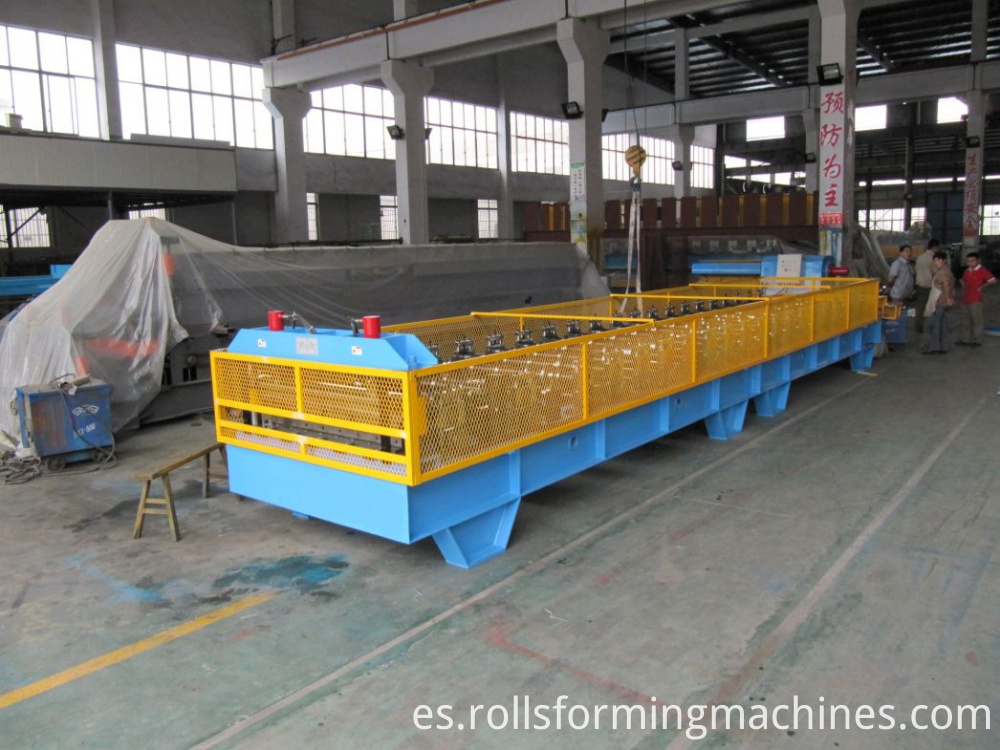

Roofing Sheet Roll Forming Machine with Trapezoid Tile
| Machine Description | Qty | Delivery time | Container Type | Price
FOB Tianjin |
| FX28-202-1010 Tile Forming Machine | 1 SET | 40 working days
after receiving deposit |
One 40 GP | 32000 USD |
Drawings profile:
Production process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting
→Products receiving

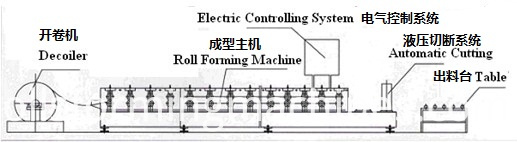

Components of production line
| No. | Name | Unit | Qty |
| 1 | Hydraulic decoiler for 5 tons | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Production parameters
Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness: 0.25-0.60 mm
Material hardness: 245 mpa---350 mpa
Material width: 1220 mm
Formed width:1010 mm
Wave length: 202 mm
Wave height: 28 mm
Forming speed: 15 m/min

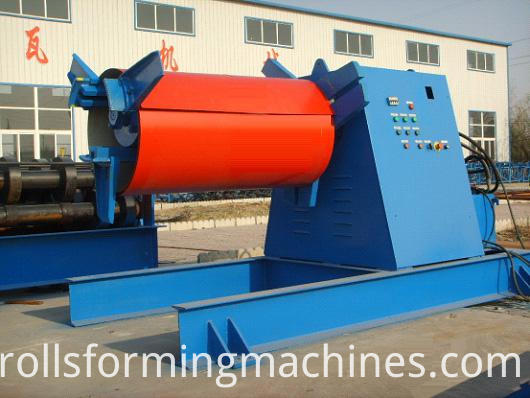

Un-coiler System
Usage:Hydraulic expanding and being inwards tight during feeding.
Automatically feeding driven by electric motor
| Main parameter | |
| Coil inner diameter | 450-550 mm |
| Max coil out diameter | 1300 -1600 mm |
| Max coil width | 1250 mm |
| Carrying capacity | 5 Tons |
| Hydraulic power | 3 kw |
| Drive power | 3 kw |
| Size | 2.7*1.3*1.8 m(L*W*H) |
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the
products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the
function of locate angle iron.

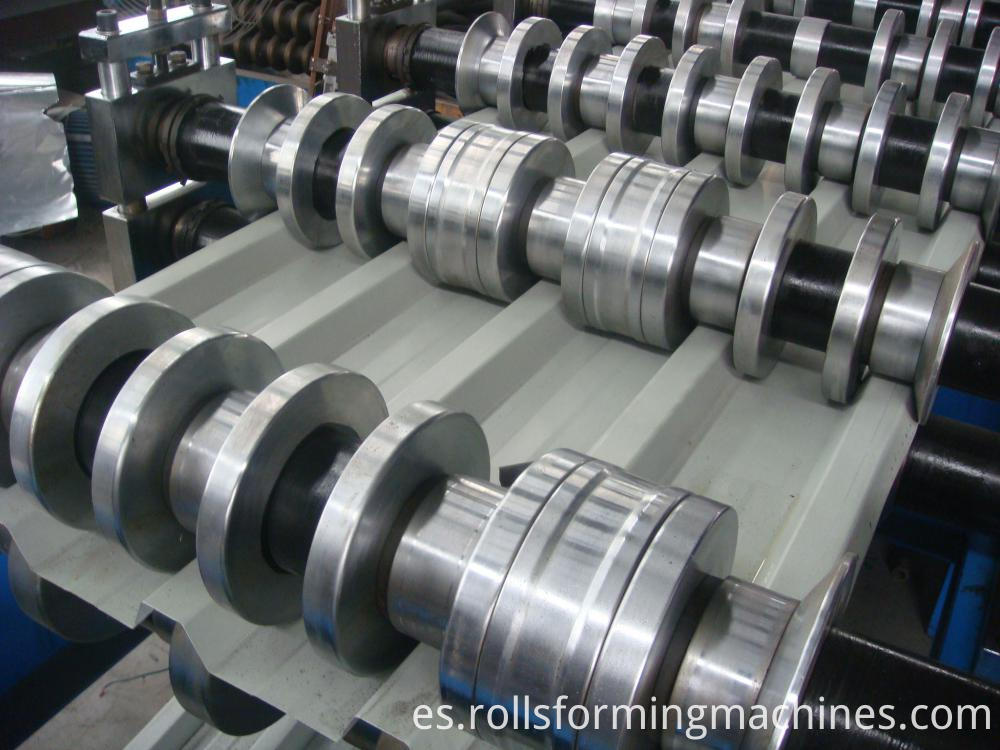

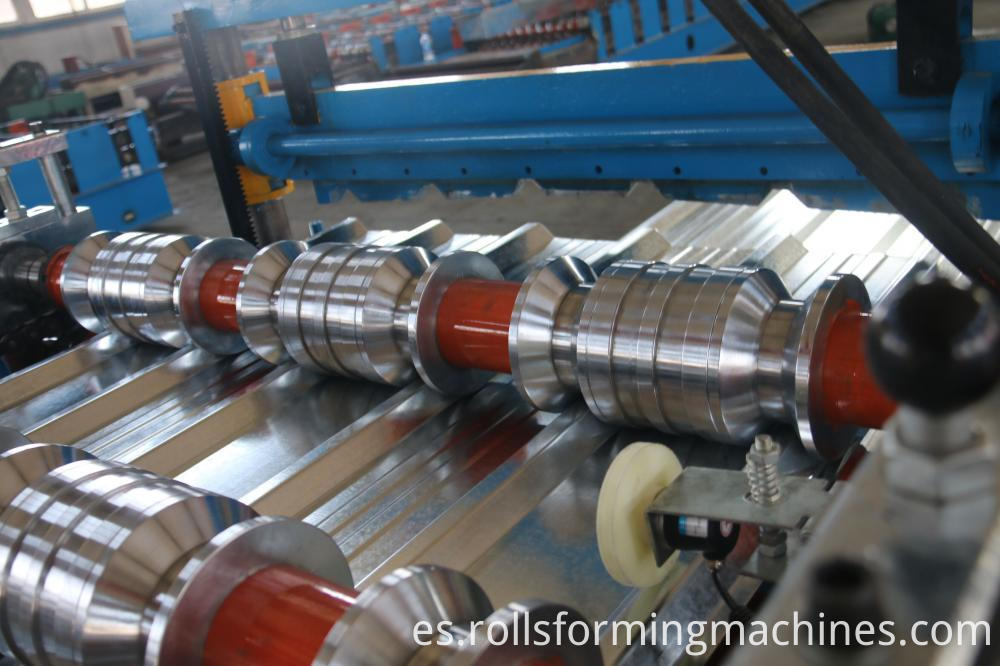

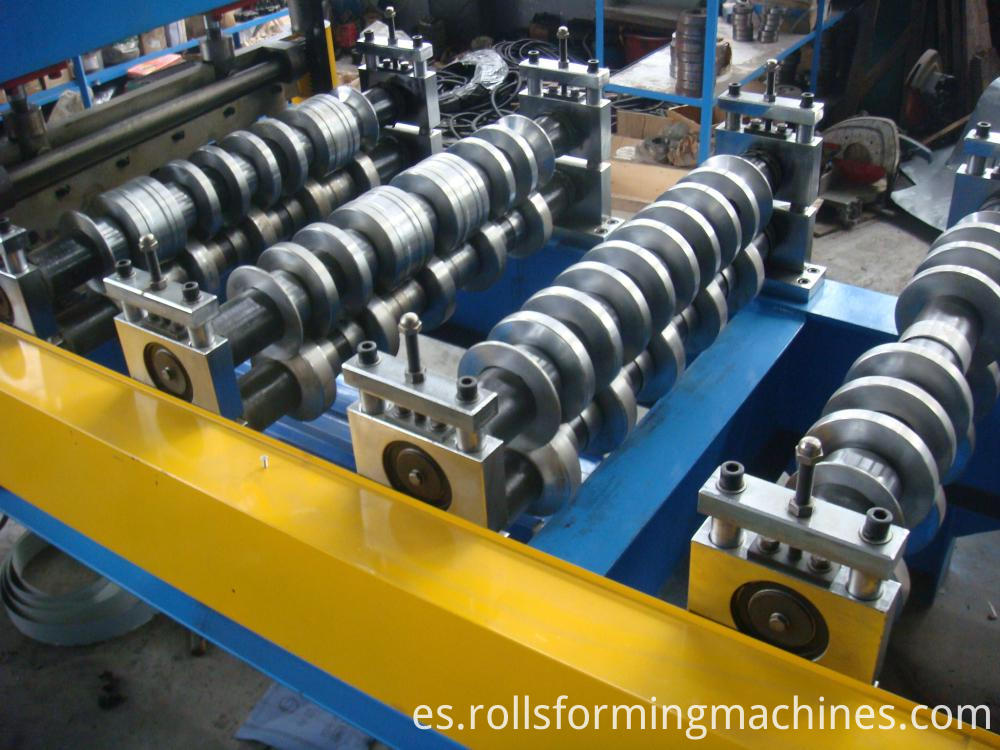

Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked
when it is working
Feature : Ensure stability , precision and lifetime.
| No. | Main parameter | |
| 1 | Length of the main part | 8500 * 1450 * 1450 mm |
| 2 | Weight of main part | 5.5 t |
| 3 | Voltage | 380 V/ 50 HZ 3 Phase (as customer`s request) |
| 4 | Roller fixer | Pillar type |
| 5 | Frame | Guide pillar and the thickness is 50 mm |
| 6 | Frame thickness | 25 mm |
| 7 | Drive mode | Gear |
| 8 | Material of rollers | 45# steel, surface hard chromium plating. |
| 9 | Material of shafts | 45# steel |
| 10 | Diameter of shafts | Φ 80 mm Solid shafts |
| 11 | Number of rollers | 15 rollers |
| 14 | Main power | 5.5 kw |
| 15 | AC motors | Either ABB or Siemens |
Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety
factor.(include cutting tools, hydraulic tank, cutter machine)
| Blade Material | Cutting system |
| Cr12 quenched | Full automatic |
Counter
One counter gauges length, pulses, and decides length. Omron encoder for length measurement.
Products receiving tables
1. It adopts welded steel and supported roller to transmit the products.
2. 3 m*2 (normally for the air cylinder, we provide a famous Chinese brand,but if you want the Festo or SMC, we also can provide, but the price will change)
